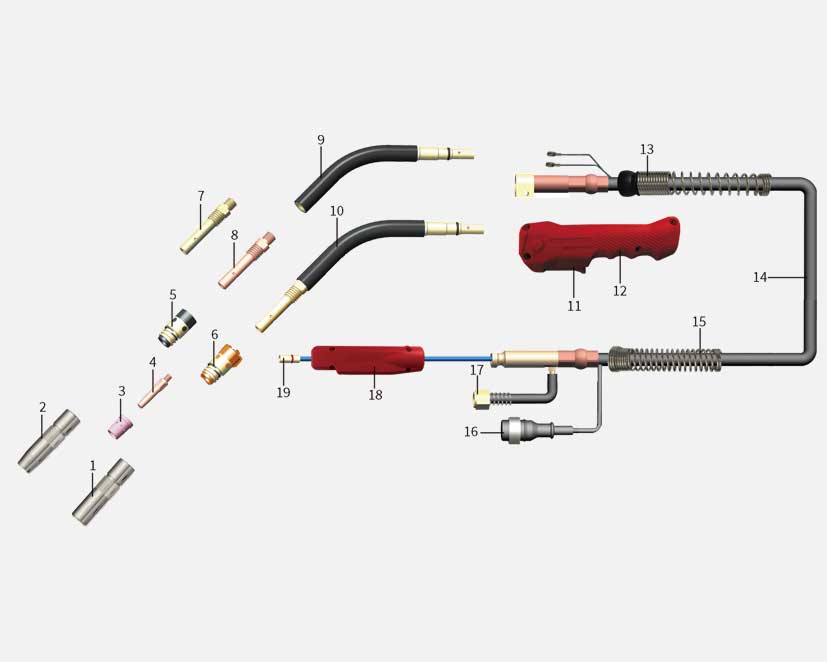

枪与配件适用于松下
| No. | Order | 描述 | OEM p/n |
| MPA0200.03 | BW 350A 整枪 3 米 | ||
| MPA0201.05 | BW 350A 整枪 5 米 | ||
| *1 | MPA0230.01 | 柱形喷管 Ø15mm | TGN01610 |
| 2 | MPA0230.02 | 锥形喷管 Ø12mm | TGN00044 |
| 3 | MPA0239 | 分配器 | TGR01001 |
| 4 | MPA0132.02 | M6x45x0.9 导电嘴, 紫铜 | |
| * | MPA0132.03 | M6x45x1.0 导电嘴, 紫铜 | |
| MPA0132.04 | M6x45x1.2 导电嘴, 紫铜 | ||
| MPA0133.02 | M6x45x0.9 导电嘴, 铬锆铜 | TET00930 | |
| MPA0133.03 | M6x45x1.0 导电嘴, 铬锆铜 | TET01054 | |
| MPA0133.04 | M6x45x1.2 导电嘴, 铬锆铜 | TET01266 | |
| 5 | MPA0240.01 | 绝缘筒, 黑色 | TFZ00002 |
| 6 | MPA0240.02 | 绝缘筒, 黄色 | |
| 7 | MPA0236 | 导电嘴座, 黄铜 | |
| 8 | MPA0235 | 导电嘴座, 紫铜 | |
| *9 | MPA0243.01 | 分体弯管 | TSM06357 |
| 10 | MPA0243.02 | 一体弯管 | TCU35022 |
| 11 | MPA0195.06 | 开关 | |
| 12 | MPA0227.01 | 手把 | |
| 13 | MPA0296 | 前电缆支撑弹簧 | |
| 14 | MPA0260.01 | 电缆组3米 | |
| MPA0260.02 | 电缆组5米 | ||
| 15 | MPA0297 | 后电缆支撑弹簧 | |
| 16 | MPA0174 | 控制插头 | TWU18101 |
| 17 | MPA0181 | 螺母 | |
| 18 | MPA0171 | 接头把套 | |
| 19 | MPA0281.02F | 蓝色送丝软管, 适用焊丝 Ø1.0-1.2, 3.5 米 | |
| MPA0281.02G | 蓝色送丝软管, 适用焊丝 Ø1.0-1.2, 5.5 米 |
* 标准配置
BLACK WOLF is in no way affiliated with PANASONIC. The parts advertised for sale are not genuine PANASONIC parts, but are parts made for and by BLACK WOLF.
References to PANASONIC machines, torches,and numbers are for your convenience only. We reserve the right to substitute genuine PANASONIC parts in place of BLACK WOLF parts.
0519-88810603
